Ansible | AWX

AWX

Ansible 위에 구축된 웹 기반의 인터페이스
목적: 실행 / 모니터링

AWX: RedHat Ansible Tower 제품의 Upstream

CentOS --up--> RHEL --up--> Fedora
RHEL --> CentOS Stream --> Fedora
Ansible Tower --> AWX
Ubuntu --> Debian

AnsibleWorks -> AWX

AWX 설치

Docker 설치

https://docs.docker.com/engine/install/centos/

sudo yum install -y yum-utils

sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo

sudo yum install -y docker-ce docker-ce-cli containerd.io

sudo systemctl enable --now docker

docker --version

Docker-Compose 설치

sudo yum install -y python3 python3-pip

sudo pip3 install -U -I pip wheel setuptools
sudo pip3 install docker-compose

docker-compose --version

AWX 설치

sudo yum -y install git

cd ~
git clone --branch 17.1.0 --single-branch https://github.com/ansible/awx.git

cd ~/awx/installer

~/awx/installer/inventory

108 admin_password=password
141 project_data_dir=/var/lib/awx/projects

sudo yum -y install libselinux-python3

sudo ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

ansible-playbook -i inventory install.yml -b

sudo docker ps

CONTAINER ID   IMAGE                COMMAND                  CREATED          STATUS          PORTS                                   NAMES
1ea4d852e694   ansible/awx:17.1.0   "/usr/bin/tini -- /u…"   11 minutes ago   Up 11 minutes   8052/tcp                                awx_task
9c527c75a323   ansible/awx:17.1.0   "/usr/bin/tini -- /b…"   20 minutes ago   Up 11 minutes   0.0.0.0:80->8052/tcp, :::80->8052/tcp   awx_web
f6775cad37ab   redis                "docker-entrypoint.s…"   20 minutes ago   Up 11 minutes   6379/tcp                                awx_redis
16d33e864106   postgres:12          "docker-entrypoint.s…"   20 minutes ago   Up 11 minutes   5432/tcp                                awx_postgres

Create Preload data 작업에서 오류 발생시 확인

sudo docker exec awx_task bash -c "/usr/bin/awx-manage create_preload_data"

An organization is already in the system, exiting.
(changed: False)

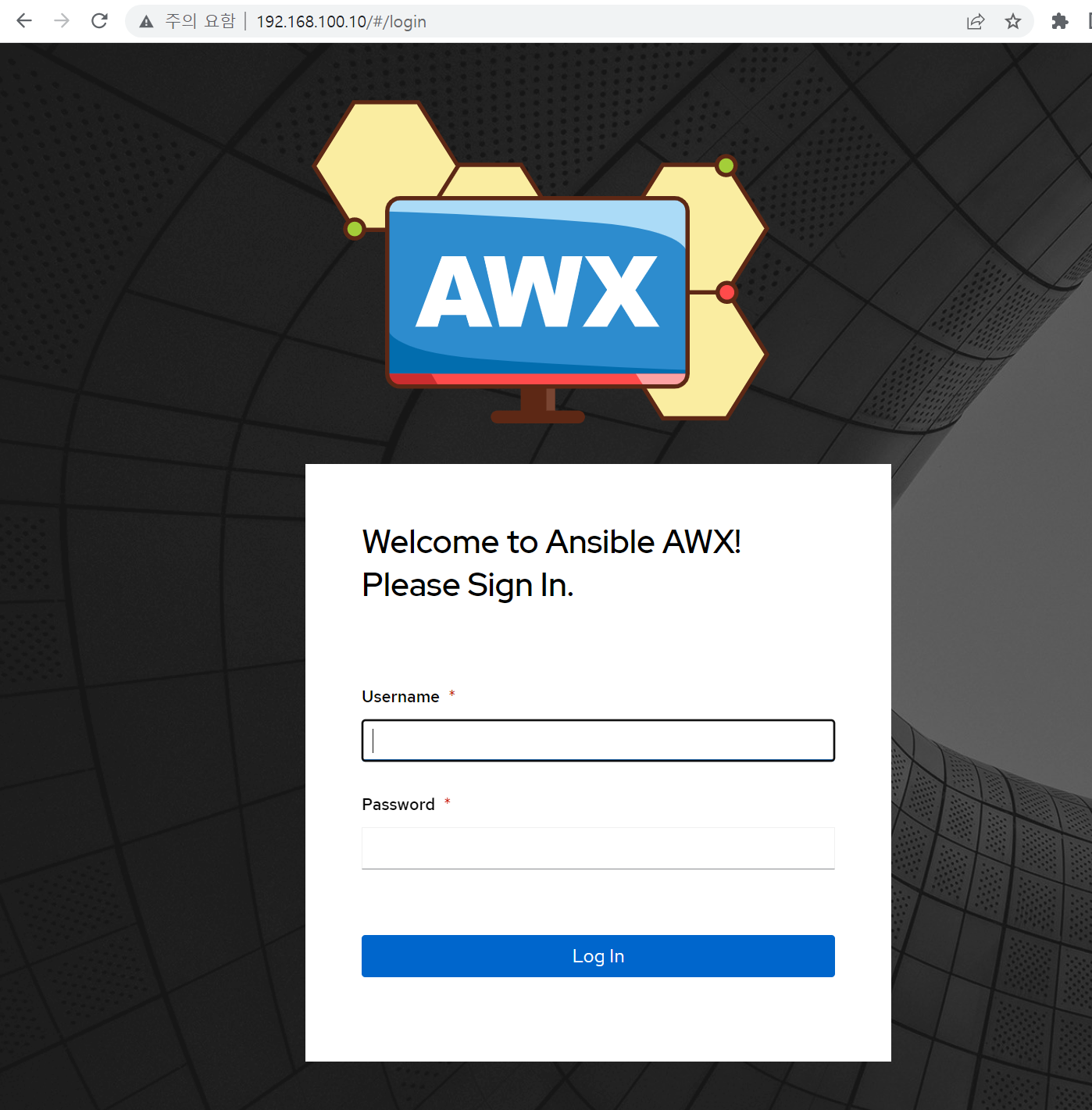

웹브라우저

http://192.168.100.10

AWX 리소스 생성

• Projects: 플레이북을 가지는 리소스
  • /var/lib/awx/projects
• Inventories: 관리 노드/인벤토리 그룹을 가지는 리소스
• Credentials: SSH, Sudo, Vault 등 자격증명 정보를 가지는 리소스
• Templates: 프로젝트, 인벤토리, 자격증명을 가지는 리소스

플레이북 준비

sudo mkdir /var/lib/awx/projects/test-awx
sudo vi /var/lib/awx/projects/test-awx/debug.yaml

- hosts: all
  tasks:
    - debug:
        msg: Hello AWX World

[test-awx-group]
192.168.100.11

프로젝트 생성

Resouces -> Projects -> Add

• Name: test-awx-project
• Source Control Credentials Type: manual
• Playbook Directory: test-awx
• Save

인벤토리 생성

Resources -> Inventories -> Add -> Add Inventory

• Create new inventory
  • Name: test-awx-inventory
  • Save
• Details -> Groups 탭 -> Add
  • Name: test-awx-group
  • 'Save'
• Group details -> Hosts 탭 -> Add -> Add new host
  • Name: 192.168.100.11
  • Save

자격증명 생성

Resources -> Credentials -> Add

• Name: test-awx-credentials
• Credential Type: Machine
• Username: vagrant
• SSH Private Key
  • controller 시스템의 vagrant 사용자의 홈디렉토리에서 ~/.ssh/id_rsa 파일 내용 복사
• Privilege Escalation Method: sudo
• Privilege Escalation Username: root
• Save

템플릿 생성

Resources -> Templates -> Add -> Add job template

• Name: test-awx-template
• Inventory: test-awx-inventory
• Project: test-awx-project
• Playbook: debug.yaml
• Credentials: test-awx-credentials
• Save

작업 실행

Resources -> Templates -> test-awx-template -> 로켓 버튼
